Multiwall Standing Seam Panels – TOPGAL

Backed by 35 years of product development experience, this standing seam panel system integrates the high-performance characteristics of the multiwall polycarbonate sheet with top quality components, giving architects and builders the flexibility to design creative yet sustainable glazing and roofing elements.

Connect With Us

For pricing or color availability, contact us today either by phone at 765-560-3872 (DURA) or send an email to info@duralightplastics.com. We’d love to discuss your next project!

Learn more about this product

Description

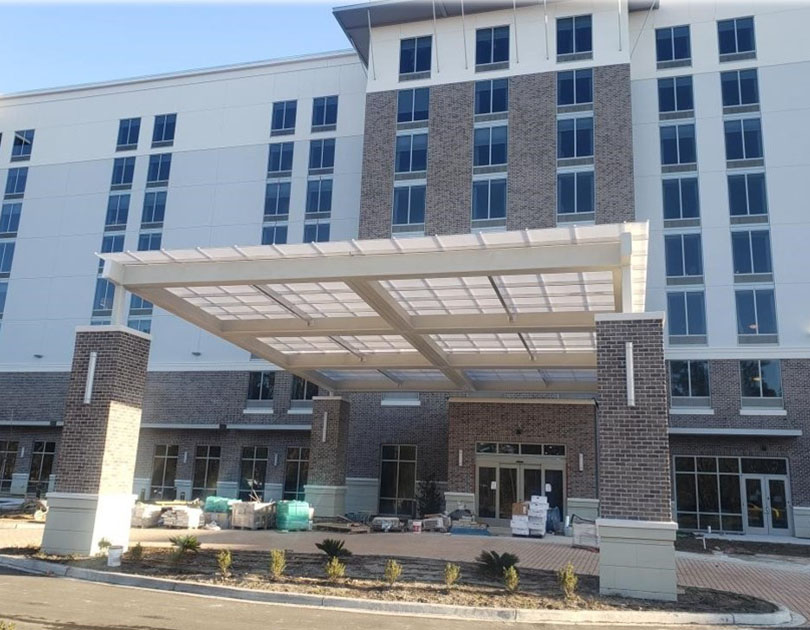

topgal standing seam canopy

A standing seam is a type of connection between two multiwall polycarbonate panels. The edges of adjacent polycarbonate standing seam roof panels are turned up and then interlocked with easy-to-fit connectors, ensuring the standing seam roof will be watertight and strong. Standing seam roofing systems minimize air or water leakage, reducing the need for gaskets or sealants.

TOPGAL Polycarbonate Roofing System Includes:

  • Topgal Polycarbonate Standing Seam Panels
  • PC or AI Connectors
  • Connector End Caps
  • PC or AI Side Profiles
  • AI Edge Profiles
  • Fasteners (Panels & Wood or Metal Structures)
  • Anti-Dust Tape

The construction of the Topgal standing seam panel system provides high-quality diffused daylight, increases impact protection, offers solar heat control, and eliminates thermal expansion issues. More natural light can be brought into a building without added structural complexity or loss of insulation.When designed and installed correctly, Topgal polycarbonate coverings are highly resistant to the forces of nature and weather.

This multiwall polycarbonate system is available for purchase by custom quote only.

Additional information

Crate

Hide Price

Lucene Indexed?

Must ship freight

Volume/Size of Unit Product

Price View

Position in search results

Ship Separately

Show Contact Us Module

Yes

Show Custom Quote Module

Yes

Product Details

topgal standing seam system

  • Stock Colors: Clear, Bronze, Ice, Blue*
  • Panel Widths:
    • 8mm – 23.62” (600mm)
    • 20mm – 39.29” (1000mm)
  • Panel Thickness: 8mm, 20mm
  • Sheet Length: Maximum Length 39’
  • UV Protectant: 1-Sided
  • Fire Rating: Class A/CC1 (Tests for 20mm)
  • Warranty: 10-Year Limited Warranty

*Special color layers available that reflect solar radiation.

Key Features

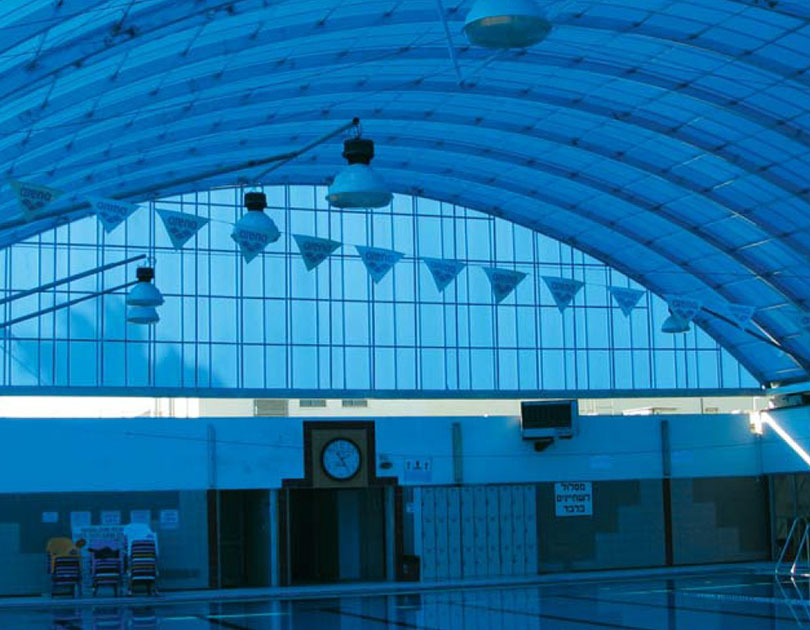

topgal architectural application

  • Flexible & Easy to Install
  • Purlin Based Installation
  • Minimum 5% Slope
  • Highly Resistant to Wind & Snow Load
  • Watertight Leak Proof System

The Topgal panel system includes all the necessary components for quality and reliable coverage. All the systems components have passed compatibility tests with the standing seam polycarbonate roof panel.

Technical Information

Video: Benefits of the TOPGAL Multiwall Standing Seam Panel System.

Video: How to install TOPGAL Multiwall Standing Seam Panels.

A complete list of install components can be found by clicking on ‘All Products’ in the main menu and selecting ‘Install Accessories’. For additional product and technical information, please visit our ‘Resource Hub’.
